I could not decide what car to build next, so I just build another (the second) G-100-25. This time, as promised I am taking progress photos. What you need to know is that my goal is not building a award-winning contest model. These cars are meant to fill my roster as quickly as possible. So you will see me taking shortcuts.

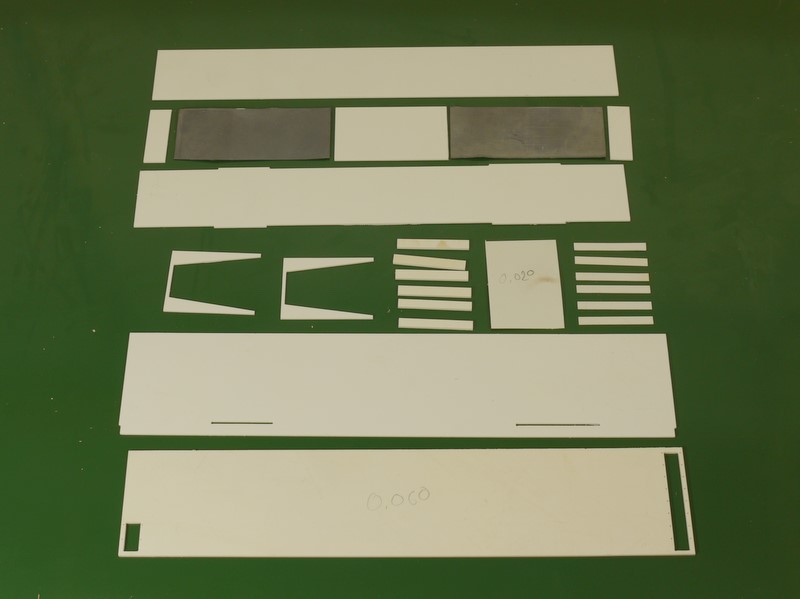

First, all main components were cut from styrene sheet. The picture shows pieces for the bottom, spacers, one end and one side.

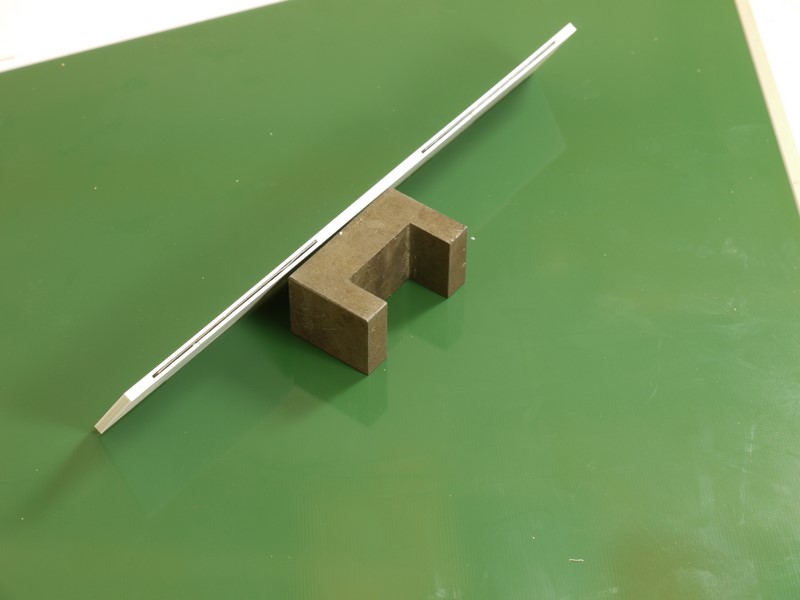

I started with the bottom which features a sandwich design to hold and hide two pieces of sheet lead.

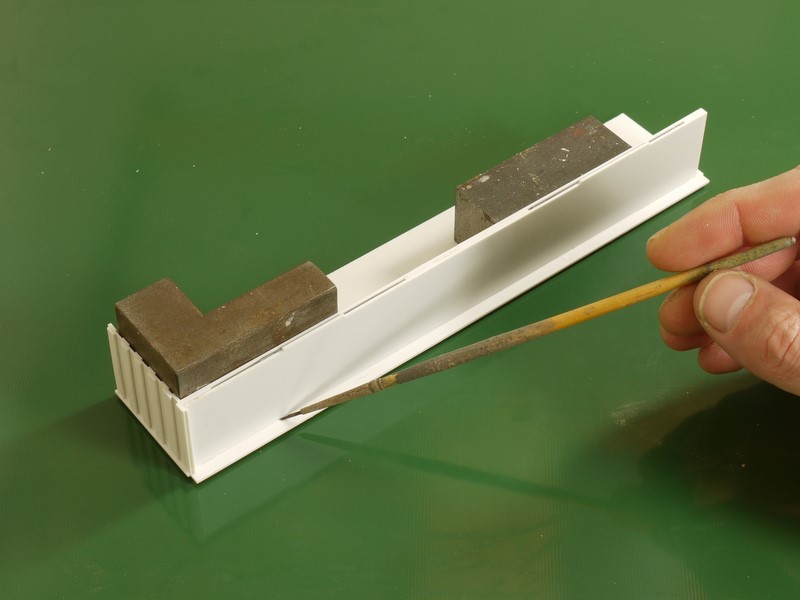

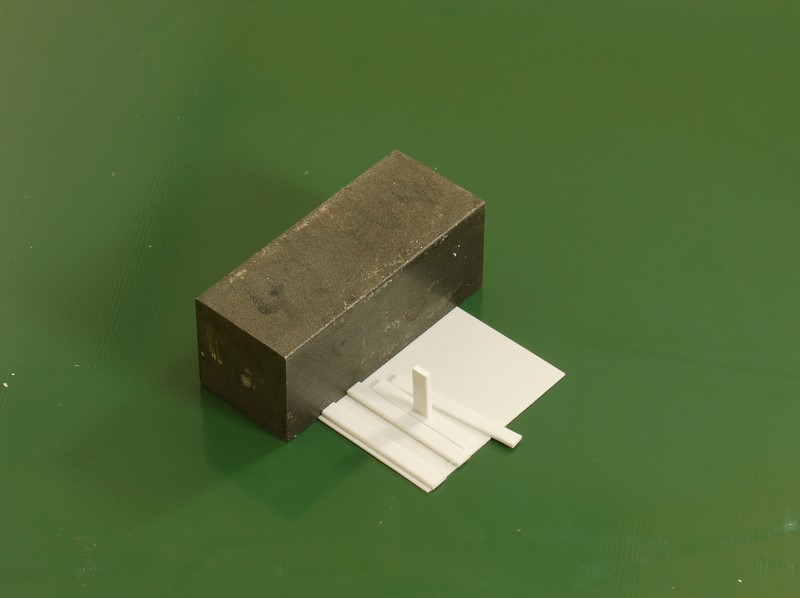

Next, the ends were made, The prototype ends are corrugated sheet metal. To simplify things I just took a solid sheet and laminated strips on booth sides. The strip with the grip is a spacer. Note, that the strips overlap the base sheet. I usually cut everything a bit larger than required and sand it down for a fit later.
This is to be continued..
Jens
Posts: 161
Threads: 6
Joined: Dec 2010

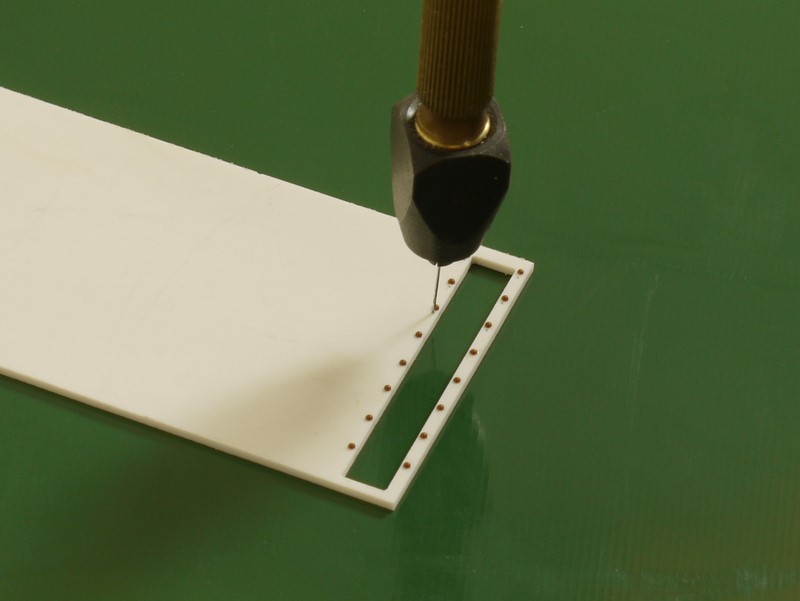

Each side is made by two sheets laminated together. The picture shows me, preparing the outer sheet to accept grabirons (in a later step). I drilled holes for the rivets and glued them in. After all rivets in place, I drill smaller holes right below the rivets. These will accomodate the grabs.

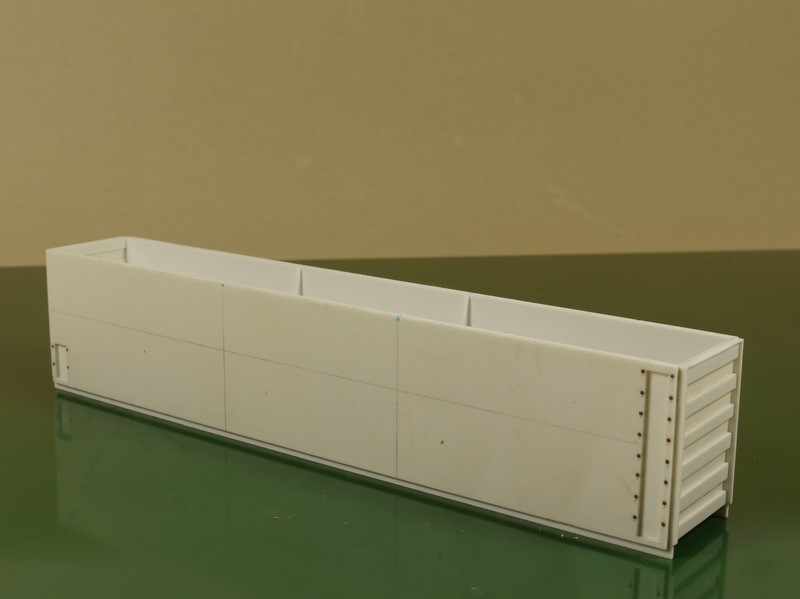

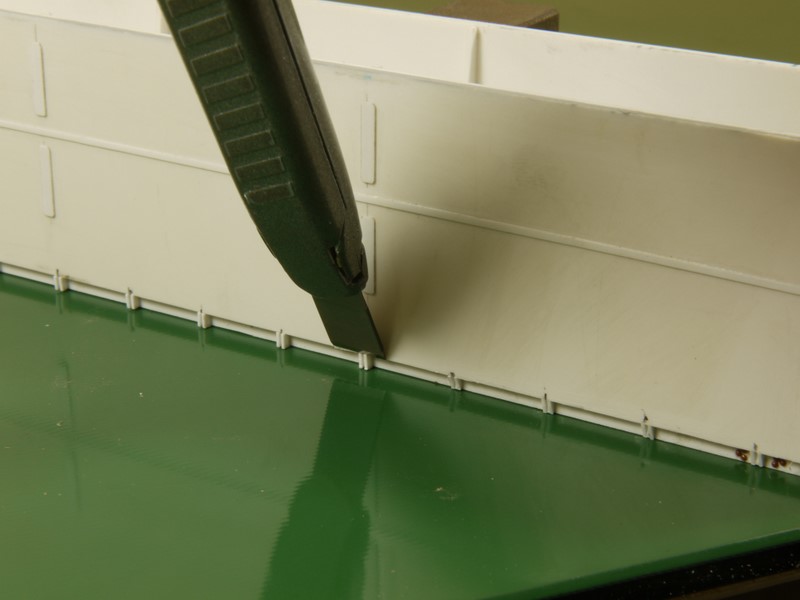

I join outer and inner side panels and glue sides, ends and bottom together to a open top box.
Jens
