I have been having problems with locomotives surging at various locations throughout the layout. This is happening in both DCC and DC. This started after I began working on the siding for the Golden Valley Canning Company.

The layout is divided into four power districts/sections. This issue is happening in all four districts.

I have tried numerous things.

Cleaned the track several times.
Replaced a couple of suspect pieces of track.
Removed the fuse circuit.

Nothing has helped and I am at my wits end.]]>
I have been having problems with locomotives surging at various locations throughout the layout. This is happening in both DCC and DC. This started after I began working on the siding for the Golden Valley Canning Company.

The layout is divided into four power districts/sections. This issue is happening in all four districts.

I have tried numerous things.

Cleaned the track several times.
Replaced a couple of suspect pieces of track.
Removed the fuse circuit.

Nothing has helped and I am at my wits end.]]> <![CDATA[Warehouse Row - A switching layout]]> https://bigbluetrains.com/showthread.php?tid=9930 Mon, 23 Sep 2024 21:25:39 +0000 Porthos63]]> https://bigbluetrains.com/showthread.php?tid=9930
My approach for this is to build a model of the layout which allows me to tweak things before actually building it full size. This is where things started:

This is the track plan that I started with. Its based on a Jack Trollope plan called Ness Street Yard. The "box" above the track plan is my initial attempt to represent the benchwork. My intention was just to draw directly on this, but the PVC sheet I used was a bit soft and difficult to draw on and then correct mistakes.

.jpg   WarehouseRow.Model.1,R.jpg (Size: 54.11 KB / Downloads: 686)

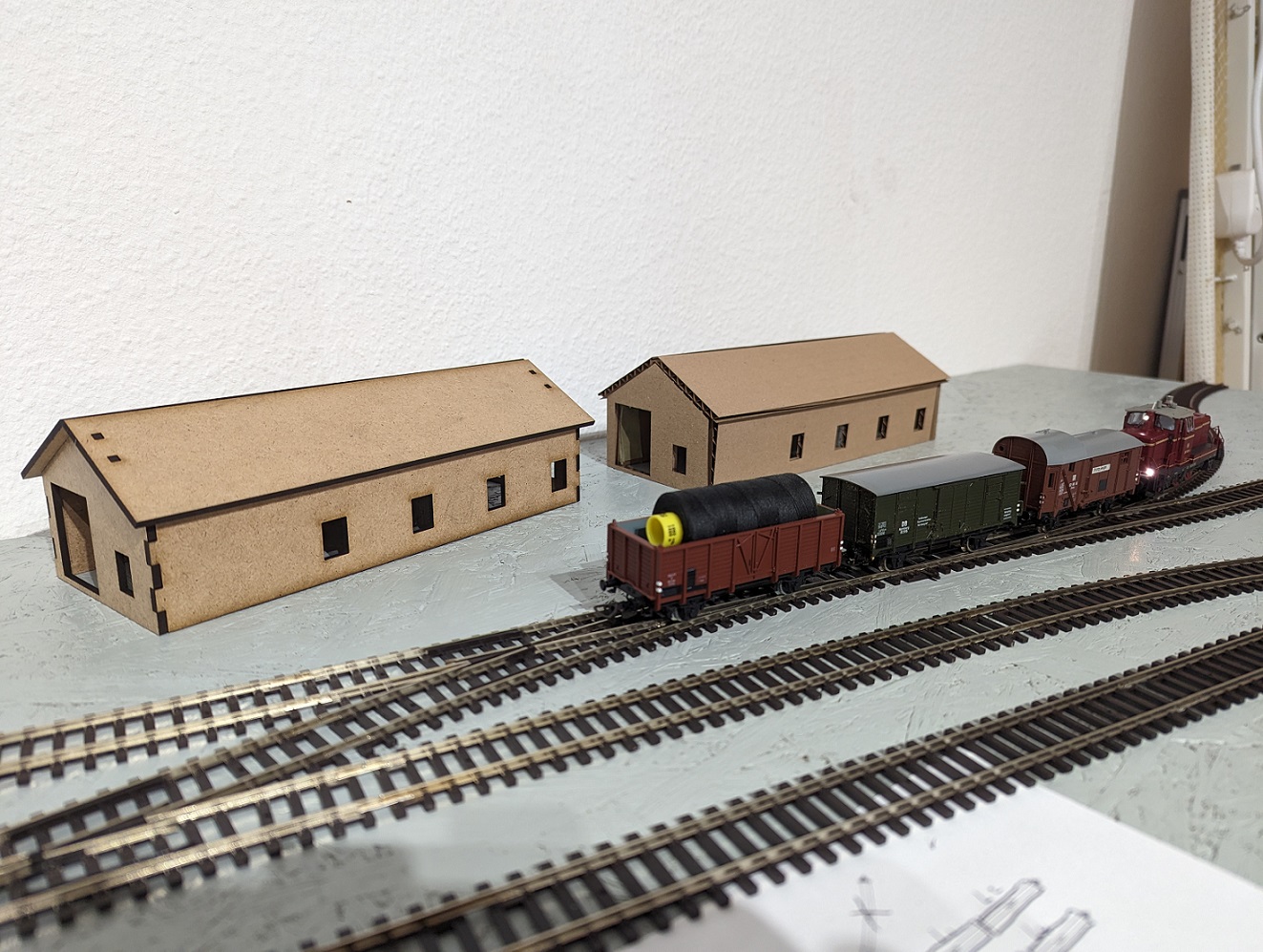

This shows some of the small buildings I built up from PVC sheet and doors/windows etc glued on. These came from the DPM template package and reduced to the proper size (or close enough at this point). These are only representations at this point to get an idea of heights and spacing.

.jpg   WarehouseRow.Model.2.R.jpg (Size: 56.86 KB / Downloads: 620)

And since it is a model of a model railroad then it also needs locomotives and freight cars to run on it.

.jpg   WarehouseRow.Model.3.R.jpg (Size: 56.57 KB / Downloads: 607) ]]>
My approach for this is to build a model of the layout which allows me to tweak things before actually building it full size. This is where things started:

This is the track plan that I started with. Its based on a Jack Trollope plan called Ness Street Yard. The "box" above the track plan is my initial attempt to represent the benchwork. My intention was just to draw directly on this, but the PVC sheet I used was a bit soft and difficult to draw on and then correct mistakes.

.jpg   WarehouseRow.Model.1,R.jpg (Size: 54.11 KB / Downloads: 686)

This shows some of the small buildings I built up from PVC sheet and doors/windows etc glued on. These came from the DPM template package and reduced to the proper size (or close enough at this point). These are only representations at this point to get an idea of heights and spacing.

.jpg   WarehouseRow.Model.2.R.jpg (Size: 56.86 KB / Downloads: 620)

And since it is a model of a model railroad then it also needs locomotives and freight cars to run on it.

.jpg   WarehouseRow.Model.3.R.jpg (Size: 56.57 KB / Downloads: 607) ]]> <![CDATA[CNR Kensington Subdivision]]> https://bigbluetrains.com/showthread.php?tid=9929 Mon, 09 Sep 2024 00:54:09 +0000 Canadian Atlantic Railway]]> https://bigbluetrains.com/showthread.php?tid=9929
The Kensington Subdivision is set on Prince Edward island in eastern Canada in the 77-85 era when CN actually served Canada from coast to coast. Traffic traveled to and from the island by car ferry. The section I am modelling is from Traveler's Rest to Summerside. Power will be MLW RSC-14's (There were 38 on CN from 1977 - 1996 and used on light rail trackage. They have A1A trucks to distribute the weight of the loco over poor track. They started out as  standard Montreal Locomotive Works (MLW) B-B RS-18's) Caboose (vans) and transfer vans will be used.

I attached a working draft of the track plan. I'll update it as changes take place.


.jpg   IMG_5507.jpg (Size: 134.2 KB / Downloads: 669)

.jpg   cnf34.jpg (Size: 107.24 KB / Downloads: 639)


.jpg   FB_IMG_1725290522867.jpg (Size: 41.08 KB / Downloads: 637) ]]>
The Kensington Subdivision is set on Prince Edward island in eastern Canada in the 77-85 era when CN actually served Canada from coast to coast. Traffic traveled to and from the island by car ferry. The section I am modelling is from Traveler's Rest to Summerside. Power will be MLW RSC-14's (There were 38 on CN from 1977 - 1996 and used on light rail trackage. They have A1A trucks to distribute the weight of the loco over poor track. They started out as  standard Montreal Locomotive Works (MLW) B-B RS-18's) Caboose (vans) and transfer vans will be used.

I attached a working draft of the track plan. I'll update it as changes take place.


.jpg   IMG_5507.jpg (Size: 134.2 KB / Downloads: 669)

.jpg   cnf34.jpg (Size: 107.24 KB / Downloads: 639)


.jpg   FB_IMG_1725290522867.jpg (Size: 41.08 KB / Downloads: 637) ]]> <![CDATA["PistonBroke" a Computer Controlled Layout]]> https://bigbluetrains.com/showthread.php?tid=9773 Mon, 21 Aug 2023 07:53:37 +0000 OBJack]]> https://bigbluetrains.com/showthread.php?tid=9773
I couldn't really find a suitable part of the forum that dealt with this sort of topic so...... here we are.  Icon_cool

I started to do this on the PistonBroke Thread but will now start separate thread here for those who are curious



So I will attempt to copy and Paste the relevant posts from the other thread to refresh and start again and see how we go



This new layout will be using a computer to control it (when I call it into action) with the "Train Controller" ®  programme by Freiwald Software
Here is a PDF of the computer drawing of my layout done with the "Train Controller" software
Which is a very simple exercise, just using the mouse as a pencil .


.jpeg   Screen Shot 2020-07-2 at 09-38-06.jpeg (Size: 31.18 KB / Downloads: 632)



Seeing as I was thinking that I wanted to mainly try and run trains with a computer controlling all turnouts timetables and schedules, I tried to keep the layout as level as possible to maximise my grossly inadequate track laying skills, and minimise any future problems. However I do have one line over a tunnel on the layout so as a quick turnaround run is achievable. This meant gouging out two rights of way into my foam baseboard to give the required clearance.




.jpeg   Making incline.jpeg (Size: 245.76 KB / Downloads: 675)
and

.jpeg   Incline Track.jpeg (Size: 257.6 KB / Downloads: 666)
The Set-up


When using these computer programmes fun facts are easy to come by ........ if I can just find where to look!!
eg: There are 77 turnouts,
     4 of which are double slips,
     1x3 way turnout
     33 left hand turnouts
     and 37 turnouts are Right hand.
With a few more to add, about 3 I think.
I drive them all with Tortoise switch machines connected to DCC Specialties Wabbit Feedback stationary decoders.
I don't have the feedback component connected yet.



.jpeg   Tortoise & Wabbits.jpeg (Size: 307.48 KB / Downloads: 645)
Moved Wabbit decoders out from under for accessibility

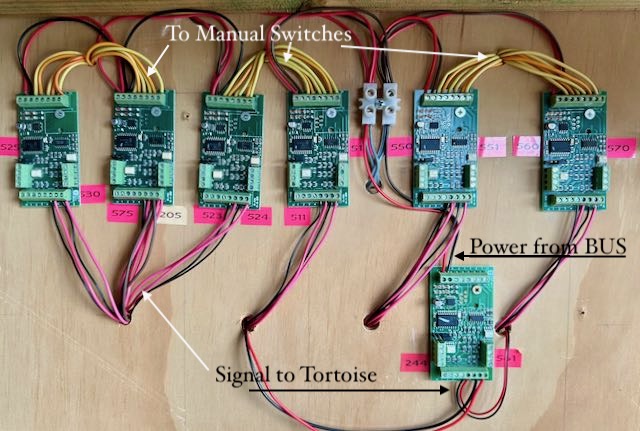

.jpeg   wabbits.jpeg (Size: 467.48 KB / Downloads: 704)

.jpeg   Notated Wabbits.jpeg (Size: 124.34 KB / Downloads: 645)


each Turnout will be able to be switched from the side of the layout via a momentary on toggle switch, as well as by the throttle and computer ......... eventually.

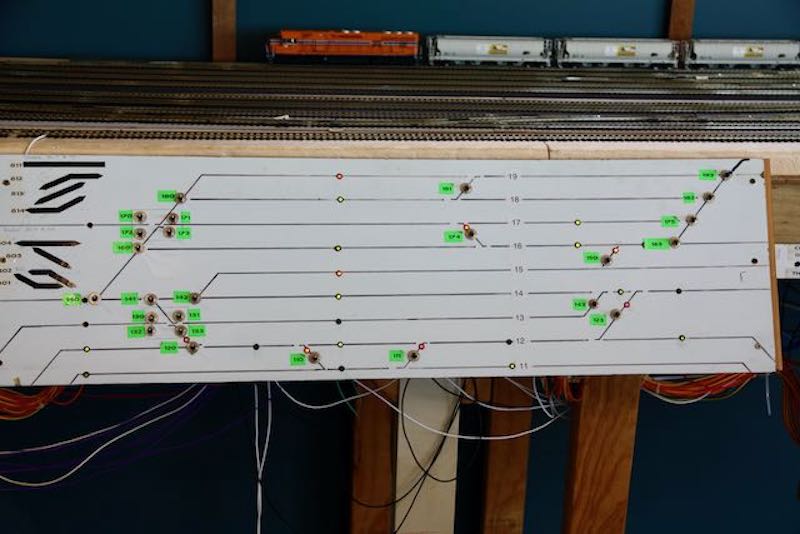

Below is my crude attempt to make a switchboard with these toggles switches in a busy area of the layout.
