Hello to all from Memphis! I'm looking at this on Ebay:
HO/HOn3 ROUNDHOUSE 2 TRUCK SHAY KIT WITH STRAIGHT BOILER WOOD CAB WISEMAN MODELS.
Has anyone attempted this kit? Maybe there are Youtubes regarding it. Just looking for opinions on feasability.
I'm wanting to do HON3, not sure about the track/code yetAnd, is it doable to install DCC/Sound in this with an appropriate decoder?
And, is it doable to install DCC/Sound in this with an appropriate decoder?
I guess I'm really asking six questions, have not even researched it, just looking for ideas!

Someone tell me I'm crazy...
Thanks!
Cid

Good Friday morning on the Leetown Division.



Ok here is a question that I need answered before I place an order. Has anyone ever used the Testors Easy Lift Off Paint & Decal Remover? I need to remove paint off two of my engines so I can get them ready for paint. My other engines I didn't have to remove the paint because the paint covered everything up. The two shells I have didn't work out as planned and you can see the lettering and decals. I know some have used brake fluid and other things but I need something that wont damage the shell.

Thank You

Hello All,

Since CSX got on the band wagon and has been painting their heritage, I figured why not start a thread for those that have caught them out and about. Sadly I am to far north to be able to get any pictures of them. The closest CSX main to me in Sandpatch grade and that's over an hour away from home. But that's neither here nor there. I know some don't like how CSX painted their engines but each railroad is different. Anways, if anyone has pictures of them please post them for us to see since we have threads for other railroads that have heritage units.

A GE 8-40C heads up the coal train for the Perch Cove Power Plant.

Bruce



here a couple of shots of the Tichy bridge with added walkway. the walkway is just a Tichy steel car walkway with Tichy strap railings added.
Jim

Attached Files

Thumbnail(s)


Rounding Bonnie's bend
Charlie

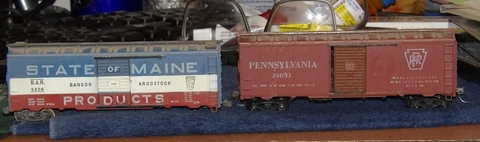

Charlie someone gave these two cars to me they are both old Athearn kits the prr one was one where the doors and rummers were unpainted they both need a little tlc you stated on one of your posts you liked unusual markings so say the word and they are yours.
Jim

Attached Files

Thumbnail(s)


Hello all -

I recently picked up a 25+ year old Bowser 2-8-0 kit.  It has the DC-71 open frame motor.

The kit has gone together well so far, but upon opening the motor I noticed lots of "magnetic dust" on the magnet.  I cleaned as much off as I could by vacuuming and compressed air.  Upon bench testing the motor detached from the chassis, it is overloading my Tech II power pack almost instantly when I get above 1/4 throttle.  When it overloads, the motor is very hot (more than just warm - but not to the point of smoking). I know these motors are current hogs, but I think this pack should be able to handle it.  I cleaned the commutator and brushes, and the armature spins freely.  The armature does not look damaged at all from a mechanical standpoint.  I tried replacing the magnet with neodymium magnets, but the result is the same.  The motor otherwise starts fine and runs smoothly at low speed.

Anything else to check here before I call this motor dead?  I may fiddle with the spring strength on the brushes, but the only other thing I can think of is that the armature has a short somewhere in the windings.

Thoughts?  I contacted Bowser, but if I have to replace the motor I will probably upgrade to a can motor to reduce current draw.

Hello,

these fine locos are plagued with cracked gears. But not only the bevel pinions in the trucks are prone for cracking. There is a tiny spur gear deep hidden in the center gearbox. Here i post several photos to show in a step by step manner how to get there:


It's 3-Truck Climax with Walschaerts valve gear. The trucks are simply fixed by snap fasteners like in textiles. They can be easily clipped off.


Remove the 2 screws on the bottom plate of the center gearbox. And lift off the cover.


Remove output shaft.


Unscrew and remove valve gear on both sides.


Lift out jackshaft.


The boilershell is fixed with 4 screws:
2 unter the cab sides.
2 under the boiler.


Unscrew the small PCB and pry off gear cover.


Remove motor screws and motor.


Then you get acess to this screw hidden under the motor. Remove it.


Then you are able to lift out the center gear box.


Beware of the strutted frames. They are partly mounted on the gear box and have to be removed there.


Remove the screws on the side of the gear box.


Lift out this gear shaft.


Look an that! This is the faulty piece, a cracked spur gear (10 teeth, Module 0,5, shaft diameter 1.5mm)
Only the first releases are concerned. Later Bachmann made the little spur gear out of brass.
Remounting is in reversed order.
Hope this is helping somebody.

Lutz
